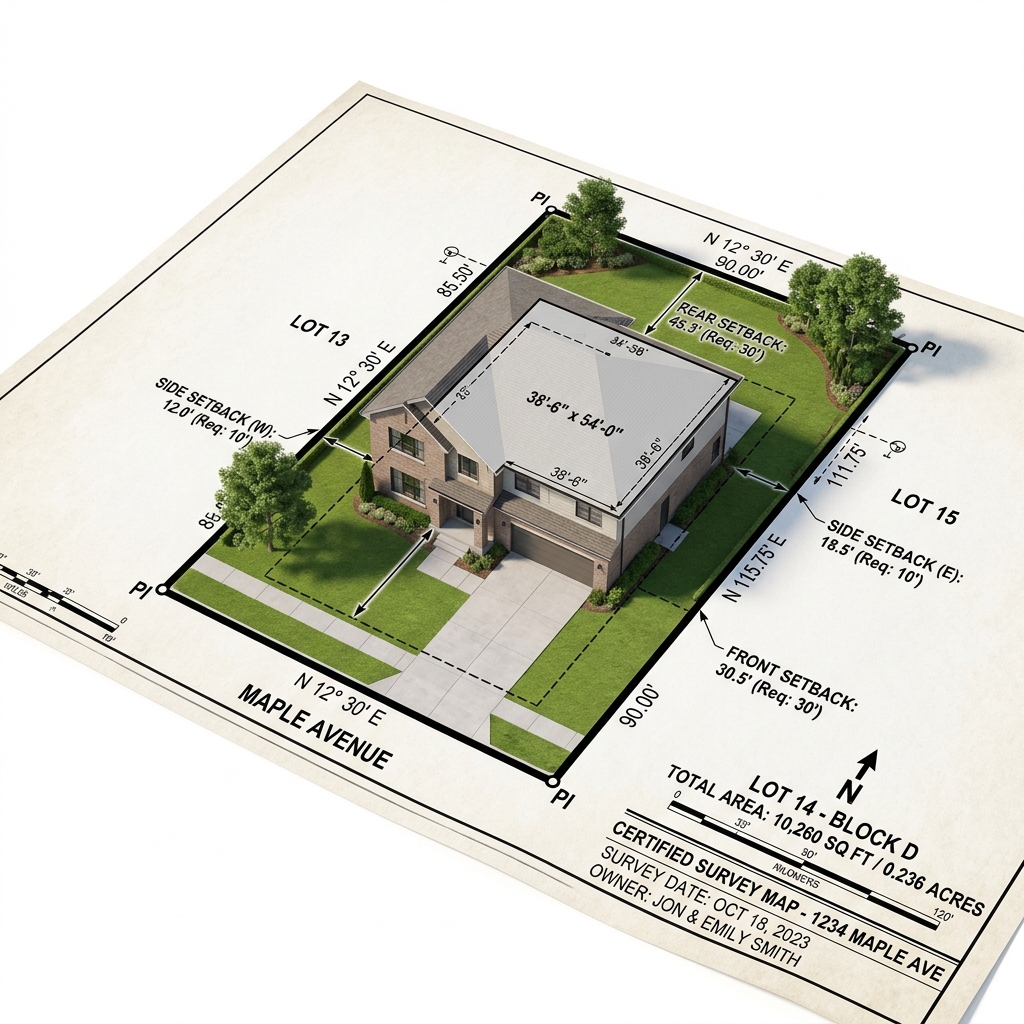

Mortgage Survey Drafting
Lender-compliant mortgage inspection drawings, improvement location certificates, and border offset mapping.
Lender-compliant mortgage inspection drawings, improvement location certificates, and border offset mapping.
Residential real estate transactions and refinance closings require quick turnarounds. Title insurers and mortgage lenders request Mortgage Inspection Drawings (also called Improvement Location Certificates or ILCs) to verify that structures are within property lines and that no encroachments exist.
At ArcusCAD, we support high-volume residential surveyors by drawing mortgage inspection sheets. We map the main house structures, easements, driveways, fence lines, and building offsets from property borders. We deliver print-ready drawings in 24 hours so you can meet title closing deadlines.
Contact UsWe look up the recorded subdivision plat map to create the parent lot dimensions, bearings, and street widths.
We import your surveyor field measurements, tie in the foundations, plot offsets, draw fences, and detail easements.
Our team verifies easements, setbacks, and dimensions, generating print-ready PDFs for client stamping.
Need fast, flat-rate residential mortgage drawings or ILC maps? Get in touch for package pricing rates.
